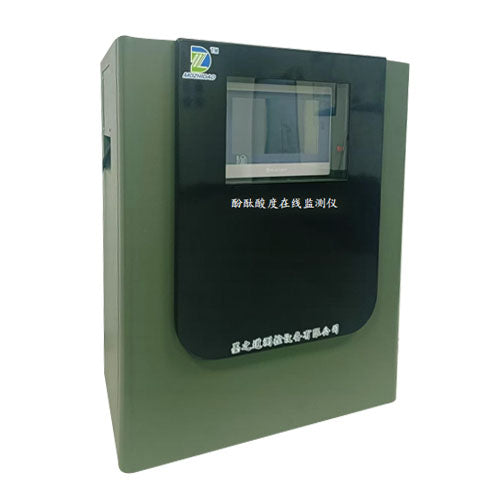

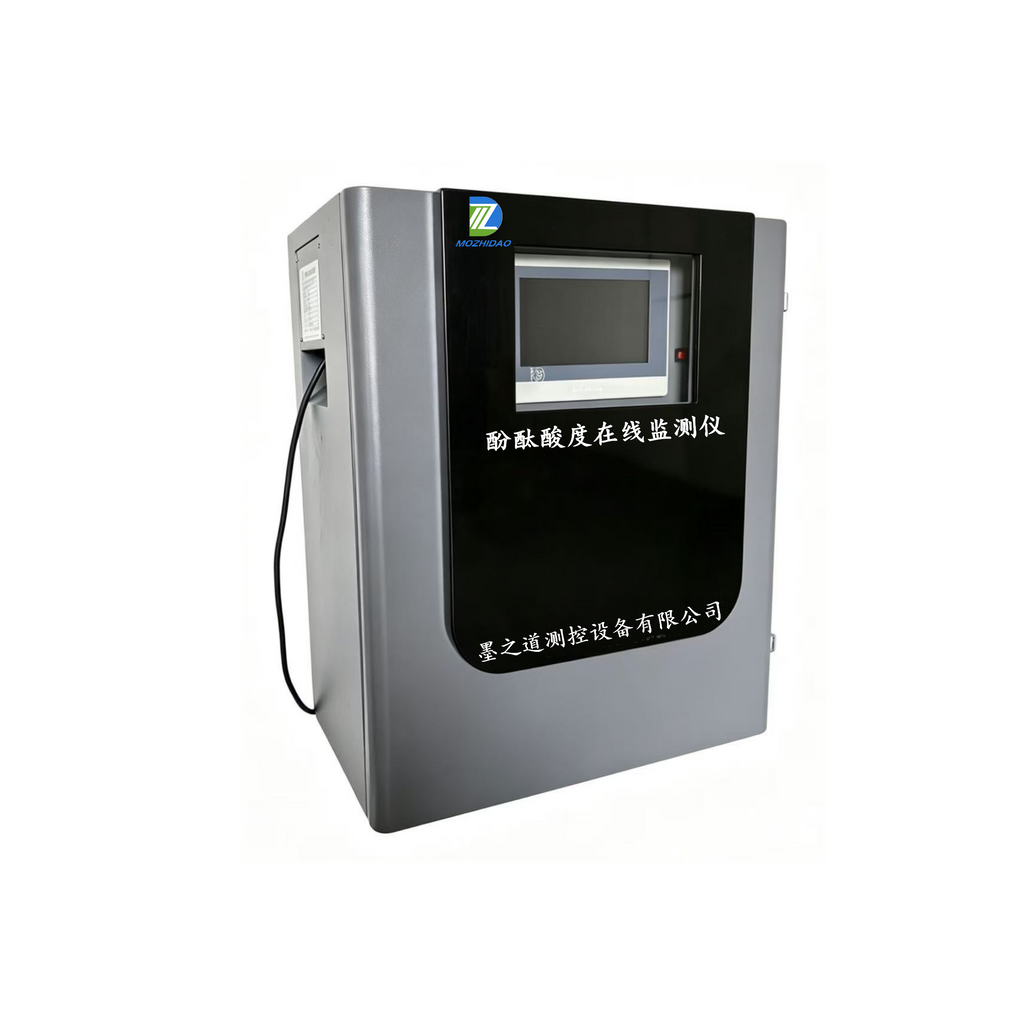

Phenolphthalein acidity online monitoring instrument

MoZhiDao
MZD-FSD-2020
Out of stock
$0.00
customers are viewing this product

Product Introduction
The titration method phenolphthalein acidity online detector adopts the principle of acid-base titration, which uses acid-base neutralization reaction to determine the acid in the water sample. The mixed solution is continuously stirred to ensure that the reaction proceeds fully. During the titration process, the hydrogen ions in the water sample are gradually neutralized, and the color of the phenolphthalein indicator begins to change from colorless to pink. When the titration endpoint is reached, that is, the hydrogen ions in the water sample are completely neutralized, the color change of the phenolphthalein indicator reaches a stable pink state. The instrument automatically stops titration and records the volume of alkaline solution consumed for calculating the phenolphthalein acidity in the water sample.

Performance parameters

Technical Specifications Parameter Values
Measurement Method National Standard Titration Method
Execution Standard GB/T 9736-2008, GB/T 258-2016, GB 5009.239-2016
Measuring Range 0.00 mmol/L ~ 10.00 mmol/L (range customizable)
Measuring Period 15 minutes
Precision ≤5% F.S. (using standard solution at 50% of full scale)
Application Industries Process monitoring of industrial water in power, chemical and steel industries, as well as water quality monitoring of wastewater, drinking water and surface water.
Automatic Cleaning Yes
Ambient Temperature 5~28℃
Relative Humidity 5~95%
Sample Requirements Turbidity < 50 NTU, maximum particle size 100 μm < 0.1 g/L
Sampling Method Via external overflow container
Reagent Consumption 260 tests or 500 tests
Power Supply 110-240 VAC, 4A, 50/60 Hz
Maximum Power Consumption 150 VA
Analog Signal Output 4-20 mA, max. 500Ω load
Digital Signal Output Supports RS485 (Modbus RTU) / Ethernet (Modbus TCP)
Enclosure Protection IP67
Dimensions (H×D×W) 600×300×500 mm
Weight 30 kg
